ORANGE1 AMERICA Electric Motors

ORANGE1 Flameproof Motors Ex db – Ex db eb Brochure

Series of ATEX Aluminum motors completely modular. The feet and flanges can be mounted without affecting the Ex type of protection. This permits a big advantage in the warehouse management. Mounting feet and flanges it is possible to get every requested mounting arrangement and this operation can be made without any problem for ATEX and IECEx motor approval. Orange1 Ex electric motors are manufactured and tested in compliance with all the EN/IEC standards and also in compliance with the main European Directives (2014/34/UE “ATEX” – 2014/30/UE “EMC” – 2006/42/EC “Machinery” – 2011/65/CE “RoHS II”) and with IECEx Scheme (only for Ex db and Ex db eb protection).

Protection Ex db, Ex db eb, Ex tb, T3-T5 Temp Class, -40C +60C Ambient,

3PH, 0.12-22KW, 2,4,6,8 Pole,  56-180 Frame, 230/400V 50HZ, 266/460 60HZ

1PH, 0.09 – 1.1KW, 2,4,6 Pole, 56–112 Frame, 230V 50HZ

3PH, 0.06 – 10KW, 71 180 Frame, 2 Speed 4/2,8/4,6/4,8/6 Poles, CT/VT

Motors for Hazardous Location for North America

• Orange1 Electric Motors Explosion Proof Motors range approved by CSA in compliance with CSA and UL standard , Nema and IEC mounting
• Class I Division 1 Groups C, D T4
• Class II Division 1 Groups E, F, G
• Ambient = -25 °C to +40 °C
• From 80 to 160 IEC frame size and from 56 to 256 Nema frame size

ORANGE1 Increased Safety Motors Brochure

Motors with Increased Safety Atex Ex eb, J2-K2 Series and Ex ec, J3-K3 Series with Non Sparking – compliance with EN standards and in compliance with the provisions of the European Directives: 2014/34 / EU “ATEX” – 2014/30 / EU “EMC” – 2006/42 / EC “Machines” – 2011/65 / CE “RoHS II”.

Increased Safety Ex eb, Gas,

• 3PH, 0.09-11Kw, 56-160 Frame, 2,4,6,8, Pole, Atex 2G, Zone 1,2, T3, -40C – +45C Amb.
• 1PH, 0.09-4Kw, 56-112 Frame, 2,4, Pole, Atex 2G, Zone 1,2, T3, -40C – +45C Amb.

Increased Safety Ex tb IIIC, Dust,

• 3PH, 0.09-18.5Kw, 56-160 Frame, 2,4,6,8, Pole, Atex 2D, Zone 21-22, T125C, -40C – +45C Amb.
• 1PH, 0.09-4Kw, 56-112 Frame, 2,4, Pole, Atex 2D, Zone 21-22, T125C, -40C – +45C Amb.

Non Sparking Ex ec, Gas,

• 3PH, 0.09-11Kw, 56-160 Frame, 2,4,6,8, Pole, Atex 3G, Zone 2, T3-T4, -20C – +40C Amb.
• 1PH, 0.09-4Kw, 56-112 Frame, 2,4, Pole, Atex 3G, Zone 2, T3, -20C – +40C Amb

Non Sparking Ex tc IIIB, Dust,

• 3PH, 0.09-18.5Kw, 56-160 Frame, 2,4,6,8, Pole, Atex 3D, Zone 22, T125C, -40C – +45C Amb.
• 1PH, 0.09-4Kw, 56-112 Frame, 2,4, Pole, Atex 3D, Zone 22, T125C, -40C – +45C Amb.

ORANGE1 Explosion Proof Motors Ex db Brochure

Standard Configuration 3PH: II 2G Ex db IIC T4 Gb – IP66 – Ta -20°C +50°C

Options:

• II 2GD Exdb IIC T4 Gb Extb IIIC – T125°C Db – IP66 – Ta -40°C +50°C II 2G Ex db IIC T5 Gb – IP66 – Ta-20°C +40°C
• II 2GD Exdb IIC T5 Gb Extb IIIC – T125°C Db – IP66 – Ta -40°C +40°C
• Available 56 – 180 Frame, in 2,4,6 Pole

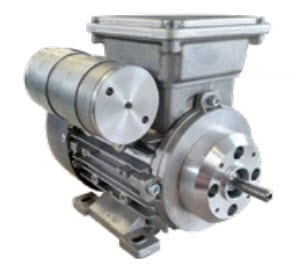

Single Phase Motors Ex db

• With permanent capacitor
• Cap start Cap run
• 230V or 110 V – 50 and 60 Hz
• Dual voltage
• Available 56 – 100 Frame, in 2,4,6 Pole

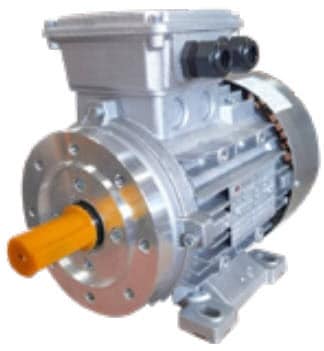

ORANGE1 Explosion Proof Motors Ex de Brochure

Standard Configuration: II 2G Ex db eb IIC T4 Gb – IP65 – Ta -20°+50°C IP66 rated on request

Available 56 – 180 Frame, in 2,4,6 Pole

Motors for Hazardous Location for North America:

• Orange1 Electric Motors Explosion Proof Motors range approved by CSA in compliance with CSA and UL standard , Nema and IEC mounting
• Class I Division 1 Groups C, D, T4 Temperature Code
• Class II Division 1 Groups E, F, G
• Ambient Temperature  = -25 °C to +40 °C
• From 80 to 160 IEC frame size and from 56 to 256 Nema frame size

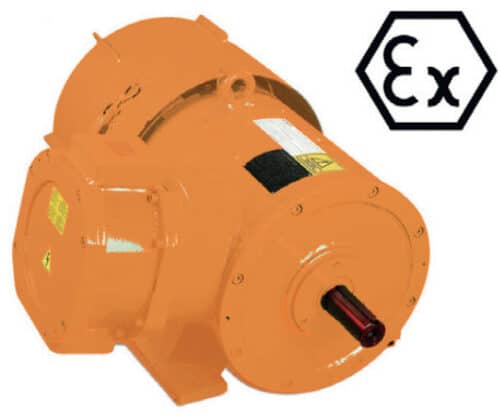

ORANGE1 Flameproof DC Motors C Series Brochure

Flameproof DC motors C Series has been expressly designed for a fully reliable operation and in conformity of  safety  prescriptions  as  requested  by  the  regulation  in  force  for  electrical  installations  in  dangerous environments.

• Group: II (not mine)
• Category: 2 (high protection)
• Type of explosive atmosphere: G (gas, steams, smokes)
• Execution: Ex d IIB For frame size C7-C11-C13-C16-C19-C23
• Ex d IIC Only for frame size C7C
• Temperature Class: T4 for duty from S1 to S9
• Protection Degree: IP55 For motor frame C7 – C7C – C13 – C23
• IP56 For motor frame C11 – C16 – C19

Motor Design:

• Standards: IEC 60034 – IEC 60079-0 – IEC 60079-1
• Supply: Batteries, Ward-Leonard control
• Insulation: Class H
• Temperature rise: Class F, B
• Ambient temperature: -20°C – + 60°C
• Minimum stocking temperature: – 50°C
• Maximum working temperature: 40° C (from 41°C to 60° C with derating
• Altitude of installation: 1000 masl  (up to 4000 masl with derating)
• Max. surface temperature: +135°C (temperature class T4)
• Vibration grade: A or B according with 60034-14
• Type of cooling: IC 411 (IEC 60034-6: self-ventilated totally enclosed motor, frame externally cooled)
• Protection Degree: according to IEC 60034-5
• Mounting: according to IEC 60034-7 : at left side, DE view
• Main terminal box: at left side, DE view

Options Available:

• Thermal protectors (NC contact)
• PTC thermal protector
• PT100 thermistors
• Tachometer (explosion-proof type)
• Pulse generator (explosion-proof type)
• Anti-condensation heater (excluding frame C7)
• Tropicalization of windings
