Techtop MotorsDietz Electric is your authorized TECHTOP Motor distributor, providing a comprehensive selection of high-quality TECHTOP electric motors backed by expert support and local availability. TECHTOP motors are designed with unique premium features to ensure reliable operation.
Have an application for an electric motor with a long and reliable life? Look no further than Dietz Electric. As a leading distributor of TECHTOP motors, we offer a comprehensive selection of reliable and efficient solutions to meet your industrial electric motor needs. TECHTOP produces aluminum and cast iron frame motors of IEC standard (FR56-355) and NEMA standard (FR48-449), with all products meeting the IE1, IE2, IE3, IE4, IE5, NEMA Epact, and premium efficiency requirements. TECHTOP motors’ unique features lead the industry by offering exceptional technical and efficiency benefits.
Why Choose Dietz Electric As Your TECHTOP Distributor?
Choosing Dietz Electric as your TechTop distributor means seamless access to TechTop’s extensive range of high-performance electric motors, known for their quality, durability, and advanced features. We leverage TechTop’s impressive North American stocking capabilities to ensure you get the motor you need, when you need it. As your authorized distributor, we streamline the procurement process, providing you with competitive pricing and efficient delivery for everything from standard cast iron and aluminum models to specialized washdown or explosion-proof units.
At Dietz Electric, we pride ourselves on building lasting relationships. We are committed to being a reliable partner, offering not just the superior products from TechTop, but also the assurance that comes from working with an established distributor that understands your industrial needs. Our goal is to make sourcing and implementing TechTop motors straightforward and effective, backed by our commitment to excellent customer service and the robust warranty and quality assurance that TechTop motors provide.
Industrial Electric Motor Product Showcase [PDF Download]
TECHTOP Electric Motors From Dietz Electric
TECHTOP TEFC - Cast Iron
TEFC – Cast Iron Motors Brochure
HP: 1 – 300
Pole: 2, 4 & 6
Frame: 143T- 449T
Volt: 208-230/ 460V
RPM: 1200/1800/3600
Body: T / TC
Standard Features:
- IP 55 Protection
- 40°C Ambient Rating
- Dual Oversized Bearings
- 1045 Steel Shaft (through 326T), 4140 (326T & up)
- Multimount Removable Feet through 326T
- One-Way Sintered Brass Condensate Drain
- Corrosion Resistant Hardware
- 1.25 Service Factor to 50HP (1.15 for larger frames)
- Regreasable Bearings 254T & Larger
- Conduit Box is 90° Rotatable
- Double Lip Oil Seals
- Class F Insulation System with Class H Stator
- F1, F2, F0 Field Convertable ( Shipped F1)
- Class 1, Div 2, Groups A,B,C & D Certified
- EISA Compliant
- 36 Month Warranty
TECHTOP TEFC - Aluminum
HP: 1 – 15
Pole: 2, 4 & 6
Frame: 143T- 215T
Volt: 208-230/ 460V
RPM: 1200/1800/3600
Body: T / TC
Standard Features:
- IP 55 Protection
- 50Hz Capable at 1.0 SF
- 40°C Ambient Rating
- 1045 Steel Shaft
- Removable Feet
- Dual Oversized Bearings
- Tropicalization on Stator Winding
- One-Way Sintered Brass Drain
- Corrosion Resistant Hardware
- Conduit Box is 90° Rotatable
- Shielded Bearings
- 1.25 Service Factor
- Double Lip Oil Seals
- Vacuum Impregnation
- Class F Insulation System with Class H Stator
- F1, F2, F0 Field Convertable ( Shipped F1)
- Class 1, Division 2, Group C & D Compliant
• 36 Month Warranty
TECHTOP Open Drip Proof
Open Drip Proof Motors Brochure
HP: 1 – 150
Pole: 2 & 4
Frame: 143T – 445T
Volt: 208-230/460V
RPM: 1800/3600
Body: T-Frame
Standard Features:
- IP 23 Rated
- 40° Ambient Rating
- Double Lip Oil Seals
- 1.25 SF up to 50HP ( 1.15 for larger frames )
- Vacuum Impregnated Stator Winding
- Corrosion Resistant Hardware
- Tropicalization on Stator Winding
- Inverter Rated (MG Part 31-15:1 Constant Torque)
- 1045 Steel Shaft (through 326T), 4140 (360T and up)
- Regreasable Bearings 254 Frame & Larger
- Nipple Seals Between Conduit Box and Body
- Rubber Slingers
- Conduit Box is 90° Rotatable
- Class H Insulation with Class F Stator
- C & D Flanges Available
- 36 Month Warranty

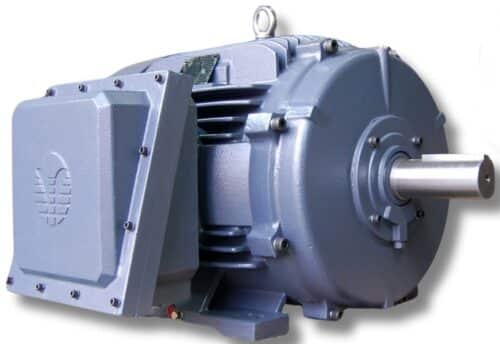

TECHTOP Explosion Proof
Explosion Proof Motors Brochure
HP: 1 – 250
Pole: 2 / 4 / 6
RPM: 1200/1800/3600
Frame: 143T – 449T
Volt: 230/460V
Standard Features:
- NEMA Premium
- 55°C Ambient Temperature Rated
- Certified for Hazardous Location
- IP 55 Ingress Protection
- Inverter Rated- 4:1 Constant Torque (MG1 Part 31)
- 1.15 Service Factor
- Dual Oversized Bearings with Labyrinth Seal
- Full Cast Iron Construction
- Vacuum Impregnated Stator
- Color Coded Lead wires
- Regreaseble Bearings 254T and larger
- Hazard Location Cert. Condensate Drains
- Conduit Box is 90° Rotatable
- IEEE 45 Above/Below Deck and Boiler Room Cert.
- Zerk Regreasable Bearings
- Temp Code T4 ≤ 326T Frame/
- Temp Code T3C ≥ 364T
- Class 1, Division 1 Groups C, D
- Class 2, Division 1 Groups F, G
- Class 1-Zone 1/20/21-Group IIA/IIB Compliant
- 575 Volt Available
- C-Flanges Available ( “TC” in Part # )
- 36 Month Warranty
TECHTOP TEFC-Metric IEC Three Phase
TEFC-Metric IEC Three Phase Motors Brochure
HP: .12–150
kW: 0.09–110
Frame: 56–280
Pole: 2/4/6/8 Volt: 230/460V
RPM: 1200/1800/3600
Standard Features:
- IP 23 Rated
- 40° Ambient Rating
- Double Lip Oil Seals
- 1.25 SF up to 50HP ( 1.15 for larger frames )
- Vacuum Impregnated Stator Winding
- Corrosion Resistant Hardware
- Tropicalization on Stator Winding
- Inverter Rated (MG Part 31-15:1 Constant Torque)
- 1045 Steel Shaft (through 326T), 4140 (360T and up)
- Regreasable Bearings 254 Frame & Larger
- Nipple Seals Between Conduit Box and Body
- Rubber Slingers
- Conduit Box is 90° Rotatable
- Class H Insulation with Class F Stator
- C & D Flanges Available
- 36 Month Warranty

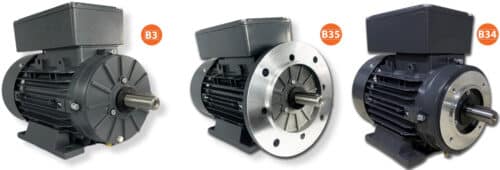

TECHTOP Metric Single Phase
Metric Single Phase Motors Brochure
HP: 0.12–3
Pole: 4
Frame: 56–100
Volt: 115 & 230V
RPM: 1800
kW: 0.09–2.2
Standard Features:
- Removable feet F1, F2, F0 field convertible (standard F0)
- Service Factor 60Hz operation
- 18 Month warranty
- Conduit Box is 90º rotatable
- Compact lightweight design
- 1045 Steel shaft
- Surface finish:
- Alkyd enamel RAL7024 – Graphite Gray
- Corrosion resistant hardware
- Cable gland fixed to connection box
- Solid State Switch
- Capacitor Start Capacitor Run
- Continuous (S1) duty
- Ambient temperatures up to 40ºC
- Installation up to 1000 MASL (3300 ft.)
- Class F insulation
- Designed to Class B temperature rise
- 36 Month Warranty
TECHTOP Cobra Line Aluminum Series
Cobra Line Aluminum Series Motors Brochure
1/3 – 3 HP, Premium Efficient, Three Phase (TEFC)
Basic Specifications
- NEMA Premium Efficiency
- Power Ratings from 0.33 to 3 HP
- Three Phase, 2 and 4 Pole
- 60 Hz (50 Hz Capable)
- 230/460V 60 Hz (Usable @ 208V)
- Totally Enclosed Fan Cooled (TEFC)
Operating Parameters
- Continuous (S1) Duty
- Ambient Temperatures up to 40°C
- Installation up to 3300ft
- IP 55 Ingress Protection
- Inverter Rated 15:1 Constant Torque
(1.0 S.F. on VFD Power) per NEMA MG 1 Part 31
- Class F Insulation
- Designed to Class B temperature rise
- Vacuum Pressure Impregnated Stator
Operating Parameters
- Continuous (S1) Duty
- Ambient Temperatures up to 40°C
- Installation up to 3300ft
Motor Features
- Shaft Grounding Brush Installed
- Fully Epoxy Potted Conduit Box Entry
- Stainless Steel Anti-Corrosion Fan Cover
- Brake Kit Ready, Encoder installation available
- PTC Thermal Protection Installed
- Multi-mount Removable feet F1, F2, F0 convertible
- 1.25 Service Factor with 60Hz TEFC operation
- Conduit Box 90° rotatable
- Full Die-Cast Aluminum Frame
- Anti-microbial (tropicalization) coating on stator
- Over sized shielded bearings
- Viton Double Lip Shaft Seal
- TENV Capable at 1.0 SF
- 1045 steel shaft
- Stainless steel nameplate
- Corrosion resistant Blue Zinc hardware
- Class 1, Division II, Groups A, B, C and D Compliant*
- Powder Coated RAL7024 – Graphite Gray
- 36 Months from date of purchase
TECHTOP 3 Phase - 56C Frame
Cobra Line 3 Phase – 56C Frame Brochure
HP: 1/3 – 3
Pole: 2 & 4
Frame: 56C
Volt: 208-230/ 460V
RPM: 1800/3600
Body: C
Standard Features:
- TEFC Aluminum Body
- IP 55 Protection
- Multimount Removable Feet
- 50/60 Hz Capable
- One-Way Sintered Brass Condensate Drain
- 1.15 Service Factor
- Conduit Box is 90° Rotatable
- Double Lip Oil Seals on both ends
- Vacuum Impregnation
- Drive End Bearing Locks
- Class F Insulation System with Class H Stator
- F1, F2, F0 Field Convertable ( Shipped F1)
- Designed to Class B Temperature Rise
- 24 Month Warranty
TECHTOP High Torque Single Phase
High Torque Single Phase Motors Brochure
HP: 1/3 – 10
Pole: 4
Frame: 56 – 215T
Volt: 115/208-230 (<145T) | 208-230 (>182T)
RPM: 1800 (60 Hz)
Body: T / TC / RND
Standard Features:
- Manual Reset Protectors
- High Efficiency Dual Cap Design
- High Quality Molded Gaskets
- Over 300% Starting Torque
- Cast Iron End Bells
- Dual Oversized Ball Bearings
- Dependable Mechanical Starting Switch
- 18 Month Warranty
TECHTOP IEEE 841 Severe Duty
IEEE 841 Sever Duty Motors Brochure
HP: 15 – 250
Pole: 2, 4 & 6
Frame: 254T – 449T
Volt: 208-230/460V
Standard Features:
- TEFC IP 56 Protection
- 40° Ambient Temp. Rating
- Complete Cast-Iron Construction
- 2-Part Epoxy Paint Protection
- VPI with Tropicalization on Stator Windings
- MG1 Part 31 – 15:1 Constant Torque
- Dual Oversized Bearings on DE & ODE
- INPRO Seals Installed on DE & ODE
- Felt Wiper on Inner Bearing Retainer
- Bearing Grease Chamber Pressure Relief Valve
- Terminal Block for 3 Lead Connection
- Removable Feet up to 326T Frame
- Stainless Steel Hardware
- 2-Part Epoxy Potted Conduit Box Entry
- Regreasable Bearings 254 Frame & Larger
- One-way Sintered Brass Condensate Drains
- 1.25 Service Factor up to 50HP (1.15 for Larger Frames)
- Available in F1, F2 & F0
- C & D Flanges Available
- Meets IEEE 841 Standards / IEEE 45 Marine Duty
- Class F Insulation with “H” Class Stator
- Class 1, Division 2, Groups A,B,C & D Compliant
- 60 Month Warranty From Date of Shipment
TECHTOP High Slip Design D
High Slip Design D Motors Brochure
HP: 3 – 125
Pole: 6
Frame: 213T – 445T
Volt: 230/460/796V
RPM: 1200
Body: T-Frame
Standard Features:
- 5% – 8% Slip Design “D” Operation
- Double Lip Oil Seals on Both Ends
- Cast Iron Terminal Box with Gasket
- Roller Bearing on 404T and Above
- TEFC Cast Iron Frame
- Corrosion Resistant Hardware
- Vacuum Impregnated Stator
- Mounting Position Convertible F1, F2, F3
- Class F Insulation System , Class H Stator
- Tropicalization on Stator Winding
- One-Way Brass Condensation Drains
- 24 Month Warranty from Date of Purchase
TECHTOP JM / JP Pump Motors
HP: 1/3 – 50
Pole: 2 / 4
Frame: 56 – 326
Volt: 208-230/460V
RPM: 1800/3600
Body: J / JM / JP
Standard Features:
- IP 55 Rated
- Continuous Duty
- Dual Voltage
- 1.15 Service Factor
- 40°C Ambient Rating
- Rubber Slingers
- Double Lip Oil Seals
- 1045 Carbon Steel Shafts
- Dual Oversized Bearings
- Vacuum Impregnated Stator
- Multimount Removable Feet
- Conduit Box is 90° Rotatable
- Stainless Steel Nameplate
- Tropicalization on Stator Winding
- Shear Stabalized Polyurea Grease
- One-Way Sintered Brass Condensate Drains
- Regreasable Bearings 254 Frame & Larger
- F1, F2, F3 Field Convertible (shipped F1)
- Class H Insulated Stator with Class F Leads
- Class 1, Div 2, Groups A, B, C & D Compliant
- 24 Month Warranty
TECHTOP Crusher Duty
HP: 75 – 250
Pole: 4 & 6
Frame: 365T – 449T
Volt: 460V
RPM: 1200/1800
Body: T-Frame
Standard Features:
- NEMA Design C
- 6 Lead – 460V
- Drive-end Roller Bearing
- 1.15 Service Factor
- 40° C Ambient Temperature Rating
- All Position Mounting Ready
- Vacuum Impregnated Stator
- Wye-Delta Start Wound
- 4140 Carbon Steel Shaft
- Bearing Grease Pressure Relief Valve
- Full Cast Iron Construction
- Double Lip Oil Seals on Both Ends
- Rubber Slinger
- Split Conduit Box is 90° Rotatable
- F1 to F2 Field Convertible ( Shipped F1)
- Shear Stabilized Polyurea Grease
- Oversized Bearings on Both Ends
- Class F Insulation with Class H Stator
- EISA Compliant
- 24 Month Warranty

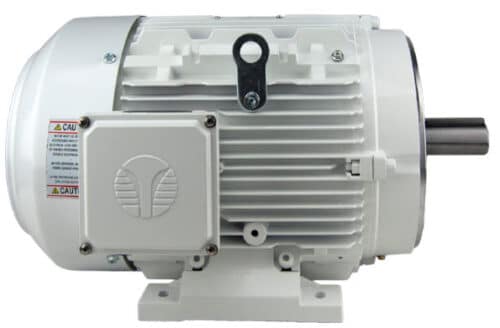

TECHTOP Washdown Duty
HP: .33–15
Frame: 56C–215T
Volt: 230/460V
Pole: 2/4/6
Body: T
Standard Features:
- NEMA Premium Efficiency
- IP 56 Rated Protection
- 50/60 Hz Capable
- 1.15 Service Fact or
- 9 Lead Dual Voltage
- Double Lip Oil Seals on DE & ODE
- Inverter Rated 15:1 Constant Torque for VFD use
- Multi-mount Removable Feet
- F1, F2, F3 Field Convertible (Shipped F1)
- Class F Insulation System (Class H Stator)
- One-Way Brass Condensation Drains on DE & ODE
- Designed to Class B Temperature Rise
- Drive End Bearing Locks
- VPI Insulated Windings
- Fully Potted Conduit Entry
- White Epoxy Coating
- Stainless Steel Shaft
- 24 Month Warranty

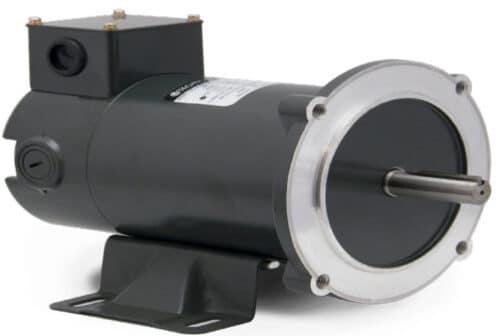

TECHTOP Permanent Magnet DC Motors
Designed for use on SCR and PWM type direct current adjustable speed drives and on across-the-line DC controls. Ideal applications include conveyors, turntables, packaging or anywhere adjustable speed and constant torque is required.
Permanent Magnet DC (PMDC) Motors Brochure
Standard Features:
- SCR Rated
- 20:1 Constant Torque speed range
- 1.0 Service Factor
- Rolled Steel Frame Construction
- Bolt-on Removable Base
- Double Shielded Ball Bearings
- 1045 Steel Shaft
- Corrosion Resistant Hardware
- Continuous (S1) Duty
- Ambient Temperatures up to 40°C
- Installation up to 3300 ft. (1000 MASL)
- IP 54 (TEFC) & IP 55 (TENV) Rated
- Class F Insulation
- Class B Temperature Rise
- 12 Month Warranty

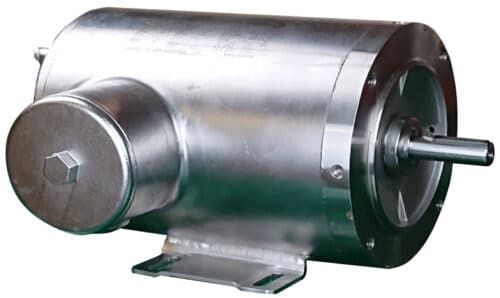

TECHTOP Stainless Steel Motors
Stainless Steel Motors Brochure
HP: 1/2– 3
Pole: 2 , 4
Frame: 56C , 56HC ,143TC,145TC
Volt: 230/460V
RPM: 1800 , 3600
Round and Footed
Standard Features:
- NEMA Premium Efficiency
- 1.15 Service Factor
- Inverter Rated 20:1 VT, 4:1 CT
- Fully Encapsulated Windings
- Semipermeable Pressure Vent
- Food Grade / BISCC Certified
- Vacuum Impregnated (VPI) Stator
- 24 Month Warranty
- IP69K Ingress Protection

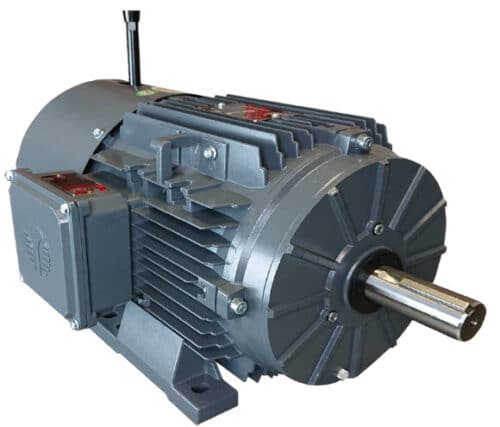

TECHTOP Brake Motors - TEFC
HP: 1/3 – 15HP
Frame: 56-215T, 63 – 112
Volt: 230/ 460V
RPM: 1800/3600
Standard Features:
- NEMA Premium Energy Efficiency Design
- Rectifier Installed for 208-230 or 460V operation.
- Manual Release Lever Included
- Multi-mount Design with Removable Feet
- 1.15 Service Factor
- 24 Month Warranty from Purchase Date

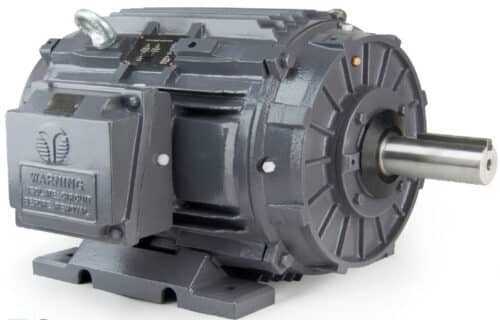

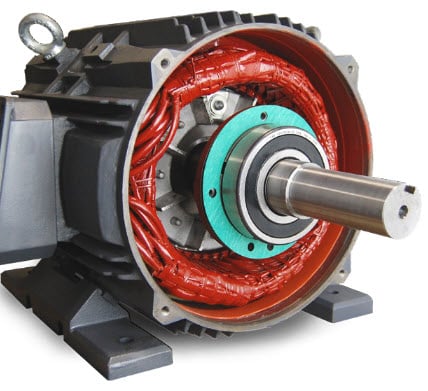

TECHTOP Cooling Tower Motors
TECHTOP Cooling Tower motors are specifically built to combat the harsh cooling tower environments. Extreme wet environments require top-notch exterior ingress protection as well as high-performance condensation draining capability.
HP: 5–50
Frame: 184T – 326T
RPM: 1800
Pole: 4
Volt: 230/460V
Body: T
Special Features:
- Moisture resistant Stator Insulator Coating
- Drain provisions for All mounting positions
- Totally Enclosed Air Over Enclosure (TEAO)
- All direction Conduit box drain provisions
- Dual Oversized Sealed Bearings
- Bearing Retainer Gaskets Installed
- Silicone Sealed End Bells
- 2 Part Epoxy Top coat Sealant
- Lead Seal Conduit Box Gasket
- Space Heaters Installed
- Tapped Shaft for Vertical Lifting
- Stainless Steel Hardware
Standard Features:
- NEMA Premium Efficiency Rating
- Inverter Rated – 1000:1 Variable Torque
- MG 1 Part 31 Compliant for VFD use
- IP 55 Protection – 40°C Ambient Rating
- 1045 Steel Shaft (through 326T), 4140 (326T & up)
- Multi mount Removable Feet through 326T
- One-Way Auto-purge Brass Condensation Drains
- 1.25 Service Factor to 50HP (1.15 SF above 50 HP)
- Conduit Box is 90° Rotatable
- Double Lip Shaft Seal on DE & ODE
- VPI Lap wound Stator with Tropicalization Coating
- Rubber Slinger on Shaft
- C & D Flanges Available upon request
- Available in TEFC enclosure upon request
- Class F Insulation System with Class H Stator
- F1, F2, F0 Field Convertible up to 326T ( Shipped F1)
- Class 1, Div 2, Groups A,B,C & D Certified
- EISA Compliant
- 36 Month Warranty from Purchase Date
Frequently Asked Questions about TechTop Motors from Dietz Electric
1. How do I determine the correct TechTop motor for my specific application?
Selecting the right TechTop motor involves considering several factors unique to your application, including the required horsepower (HP), speed (RPM), voltage, frame size, and the operating environment (e.g., wet, dusty, hazardous). You’ll also want to think about the duty cycle and any specific mounting requirements. Our experienced team at Dietz Electric is here to help. By discussing your application’s demands with us, we can guide you through the extensive TechTop product lines, such as their robust Cast Iron series or versatile Cobra Aluminum motors, to ensure you choose a motor that delivers optimal performance and longevity.
We recommend gathering as much information as possible about your existing motor (if replacing one) or the machinery it will power. Details like these, along with understanding the specific features TechTop offers—like their “Dual Oversized Greaseable Bearings” for larger frames or specialized “Washdown Duty” designs—will help us pinpoint the most suitable and efficient motor. Don’t hesitate to contact us; our specialists can walk you through the selection process.
2. What is the standard warranty on TechTop motors when purchased through Dietz Electric?
TechTop motors are known for their quality and reliability, and they come with robust manufacturer warranties. For instance, many TechTop motor series, including their TEFC Cast Iron, TEFC Aluminum, and Explosion Proof lines, offer a 36-month warranty. Specific models like the IEEE 841 Severe Duty motors even carry a 60-month warranty from the date of shipment.
When you purchase a TechTop motor from Dietz Electric, an authorized distributor, you receive the full manufacturer’s warranty. We can provide you with the specific warranty details for the particular motor model you are interested in at the time of your quote or purchase. We also facilitate the warranty process, ensuring any claims are handled efficiently.
3. Can Dietz Electric assist with sourcing or specifying customized TechTop motors?
Yes, absolutely. TechTop is known for offering “Customization” as one of its key strengths, and at Dietz Electric, we are equipped to help you with these specialized requirements. If you need a TechTop motor with specific modifications or features not found in standard off-the-shelf models, our team can work with you to define your exact needs.
We will then liaise with TechTop to specify and source the custom motor solution that fits your application perfectly. Whether it’s a unique shaft dimension, special winding, or a particular environmental protection, we act as your expert interface to ensure the customized motor meets both TechTop’s quality standards and your operational demands.
4. What are typical lead times for TechTop motors ordered from Dietz Electric?
Lead times for TechTop motors can vary depending on the specific model and current stock levels. TechTop maintains twelve stocking warehouses within the US to ensure good availability of their products. For many common motor types that we stock locally at Dietz Electric or that are readily available from these TechTop warehouses, lead times can be quite short.
For more specialized or customized motors, the lead time might be longer. When you request a quote, our team at Dietz Electric will provide you with an estimated lead time based on the specific TechTop motor you require and current availability. We always strive to get your motors to you as quickly as possible.
5. Does Dietz Electric offer local delivery or on-site support for TechTop motors in the Milwaukee area?
As a Milwaukee-based company, Dietz Electric is committed to serving our local customers effectively. We do offer local delivery services for TechTop motors within the Milwaukee metropolitan area and surrounding regions. Please discuss your delivery needs with our team when placing your order.
Regarding on-site support, while our primary role as a distributor is to supply TechTop motors, we also offer comprehensive motor repair services, including U.L. Certified explosion-proof repair. If you require on-site assistance for troubleshooting or installation, please contact us to discuss your specific situation, and we can determine how best to support your needs, potentially in conjunction with our repair and field service capabilities.
6. What information do I need to provide to get an accurate quote for a TechTop motor?
To provide you with the most accurate and timely quote for a TechTop motor, please have as much of the following information available as possible:
- Motor Specifications: Horsepower (HP), RPM (speed), voltage, phase (single or three-phase), and desired frame size/type (e.g., NEMA or IEC, Cast Iron, Aluminum).
- Application Details: Briefly describe what the motor will be used for and the operating environment (e.g., clean, dusty, wet, hazardous location).
- Existing Motor Information (if replacing): If you are replacing an existing motor, the nameplate data from the old motor is extremely helpful.
- Specific Features: Mention any special features required, such as explosion-proof, washdown duty, inverter duty, or specific mounting needs.
- Quantity: The number of motors you require.
The more details you can provide, the better we can match a TechTop motor to your needs and provide a comprehensive quote. You can find a “Request a Quote” option on our website, or feel free to call us directly.
